Industrial Hoses

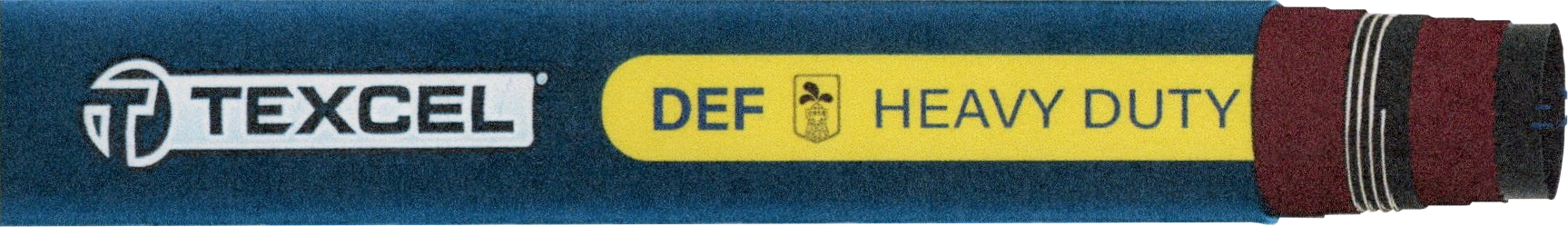

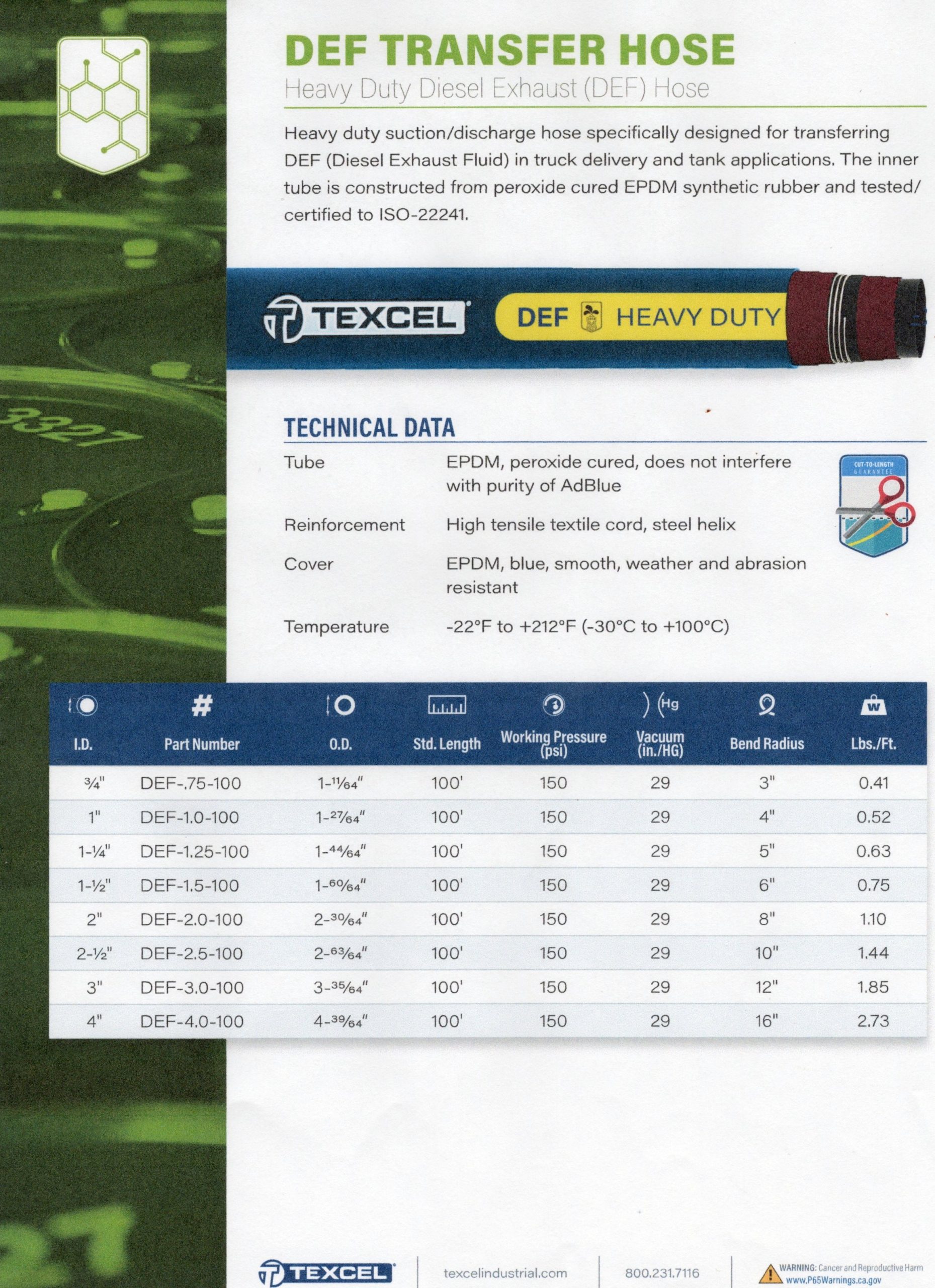

DEF Transfer Hose
Heavy Duty Diesel Exhaust
(DEF) Hose
by texcel
Heavy duty suction/discharge hose specifically designed for transferring DEF (Diesel Exhaust Fluid) in truck delivery and tank applications. The inner tube is constructed from peroxide cured EPDM synthetic rubber and tested/ certified to ISO-22241.
Technical Data
Tube
EPDM, peroxide cured, does not interfere with purity of AdBlue
Reinforcement
High tensile textile cord, steel helix
Cover
EPDM, blue, smooth, weather and abrasion resistant
Temperature
-22°F to +212°F (-30°C to +100°C)
I.D.
Part Number
O.D.
Std. Length
Working Pressure (PSI)
Vacuum (in/HG)
Bend Radius
Lbs./Ft.
3/4″
DEF-75-100
1-11/64″
100′
150
29
3″
0.41
1″
DEF-1.0-100
1-27/64″
100′
150
29
4″
0.52
1-1/4″
DEF-1.25-100
1-44/64″
100′
150
29
5″
0.63
1-1/2″
DEF-1.5-100
1-60/64″
100′
150
29
6″
0.75
2″
DEF-2.0-100
2-30/64″
100′
150
29
8″
1.10
2-1/2″
DEF-2.5-100
2-63/64″
100′
150
29
10″
1.44
3″
DEF-3.0-100
3-35/64″
100′
150
29
12″
1.85
4″
DEF-4.0-100
4-39/64″
100′
150
29
16″
2.73
