Hydraulic hose pressure ratings define the maximum pressure a hose can safely handle. These pressure ratings, measured in pounds per square inch, better known as PSI, reflect the hose’s construction, materials, and reinforcement layers. The working pressure indicates the highest continuous pressure the hose can manage during regular use. Burst pressure represents the point at which the hose will fail catastrophically. Industry standards typically require a minimum burst pressure of at least four times the working pressure to ensure safety margins in hydraulic applications.
Basics of Hydraulic Hose Pressure Ratings
The pressure rating of a hydraulic hose signifies the maximum pressure it can safely contain during normal operations. Hydraulic hose specs, typically measured in PSI, depend on the hose’s construction, materials, and reinforcement layers. Working pressure refers to the maximum continuous pressure the hose can handle during regular use, while burst pressure indicates the point at which the hose will fail catastrophically. Industry standards usually mandate a minimum burst pressure of at least four times the working pressure to ensure safety margins in hydraulic applications.

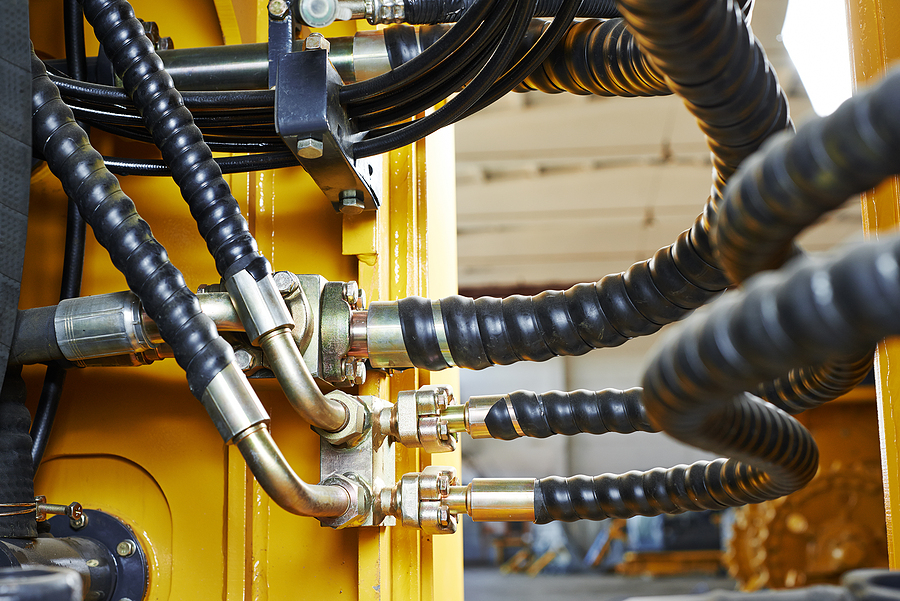

Hydraulic hose construction influences its pressure capabilities. High-pressure hydraulic hoses feature multiple layers of reinforcement, often including wire braiding or spirals that enhance strength. The inner tube must resist the hydraulic fluid’s chemical properties, while the outer cover shields against environmental factors. Different types of hydraulic hoses are designed for specific pressure ranges, from low-pressure applications like return lines to extremely high-pressure systems exceeding 10,000 PSI. Recognizing these construction differences aids in selecting hydraulic hoses that meet both pressure requirements and application-specific demands.
How to Match Hose Specs with System Requirements
When aligning hose specifications with system requirements, examine the entire hydraulic system holistically. Consider the pressure rating of the complete hose assembly, including fittings, as the fitting often becomes the weakest link in the pressure containment chain. Factor in system dynamics such as pulsation, frequency of pressure cycling, and pressure surges during your selection process. Many hydraulic system failures occur not because the maximum working pressure was continuously exceeded, but because repeated pressure spikes weakened the hose over time.
Tips for Selecting the Right Hydraulic Hose
When choosing a hydraulic hose, accurately determine your system’s maximum pressure requirements, including both steady-state pressure and potential pressure spikes. Select a hose with a working pressure rating that exceeds your system’s maximum operating pressure by a comfortable margin to accommodate unexpected pressure surges. Consider the specific application environment, including temperature extremes, exposure to chemicals, abrasion risks, and bend radius requirements. A hose that meets pressure specifications but fails due to environmental factors proves unsuitable.
Documentation and testing play crucial roles in proper hose selection. Request comprehensive specifications from the hose manufacturer, including pressure ratings across different operating temperatures, compatibility charts for various hydraulic fluids, and compliance information regarding relevant SAE or international standards. For critical applications, consider requesting test certificates confirming the actual burst pressure versus the rated working pressure.
Remember that the complete hose assembly’s pressure rating is determined by its weakest component, so ensure fittings and crimping specifications align with your pressure requirements. Implement a regular inspection and replacement schedule based on operating conditions, as all hydraulic hoses degrade over time regardless of their initial pressure rating.
